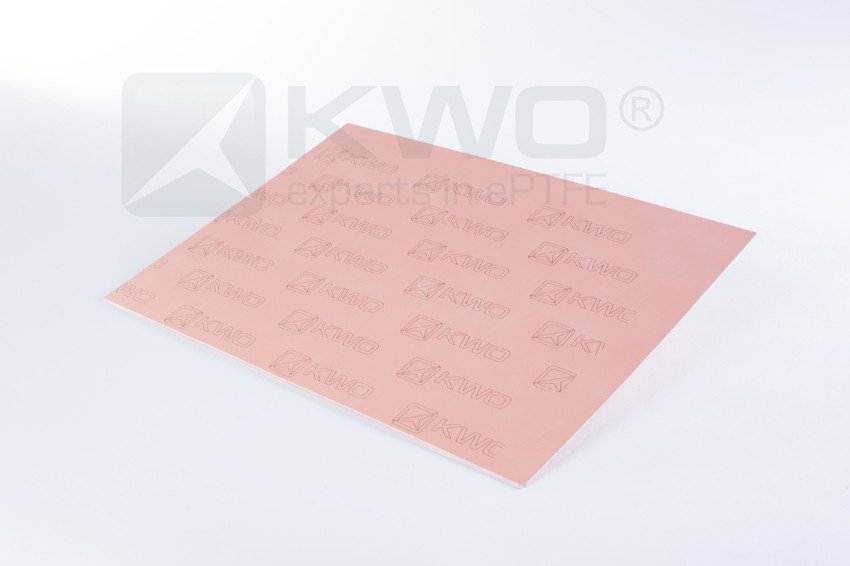

KWO® CellFlon® Sheet Brown
sPTFE gasket sheet
KWO® CellFlon® Sheet Brown is a gasket sheet material containing structured PTFE and Silica.
KWO® CellFlon® Sheet Brown is especially for use in the chemical and petrochemical industry.
Suitable for sealing most chemicals across the whole pH range (0-14), including strong acids, hydrocarbons, steam, solvents or chlorine.
- universal purpose applications
- excellent sealability
- reduced cold flow
- easy to install and remove without residue
- high chemical resistance
- UV resistant, non-ageing, unlimited storable
- non-flammable
- flange connections
- closing lids
- reactors
- process vessels
- TA Luft regulation and blow out safety acc. to VDI 2200
- specific values according to DIN EN 13555
- FDA 21 CFR 177.1550 tested
Technical Data
| MATERIAL | structured PTFE with Silica |
| CHEMICAL RESISTANCE | in the entire pH range (pH 0-14, except molten alkali metals or elemental fluorine) |
| TEMPERATURE RANGE | recommended temperature range: from -210°C (-346°F) to +260°C (+500°F), material heat resistant up to +315°C (+600°F)* |
| PRESSURE RANGE | vacuum up to 80bar (1200psi) depending on the installation situation* |
| PHYSIOLOGICALLY INERT | physiologically harmless in all recommended applications |
| DENSITY | 2,20 g/cm³ ± 0,25 g/cm³ |
*NOTE: temperature and pressure guides cannot necessarily be used simultaneously.
